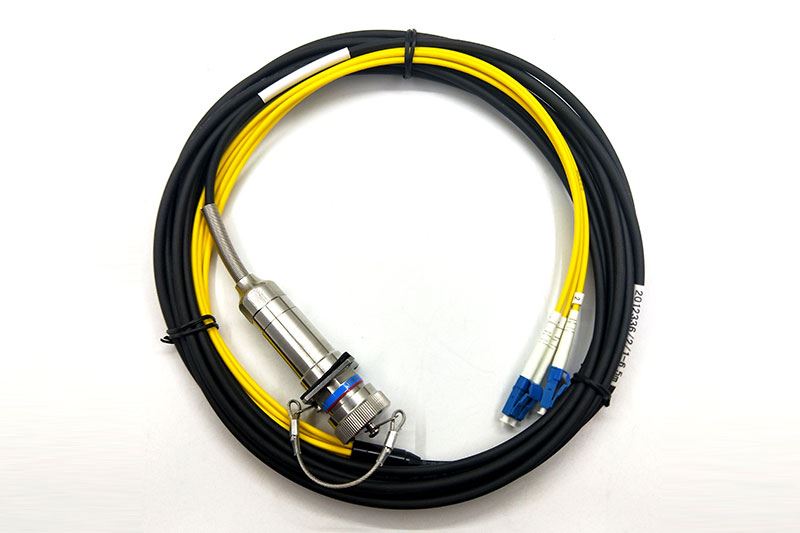

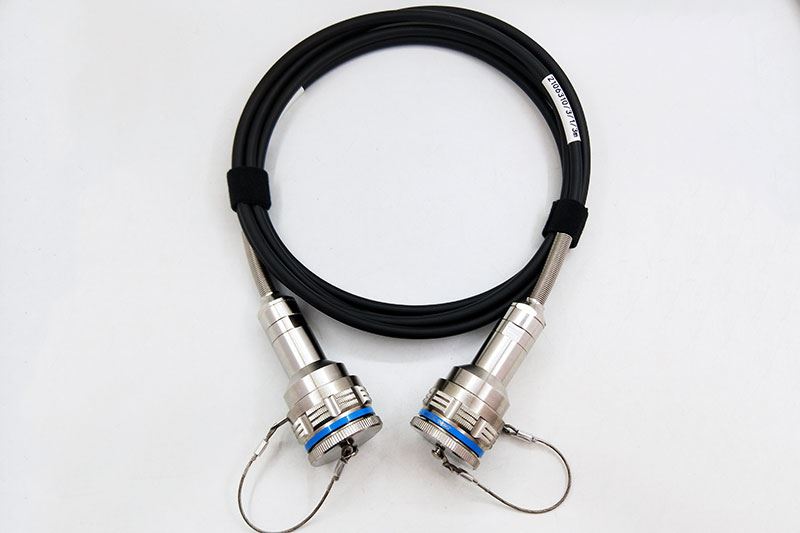

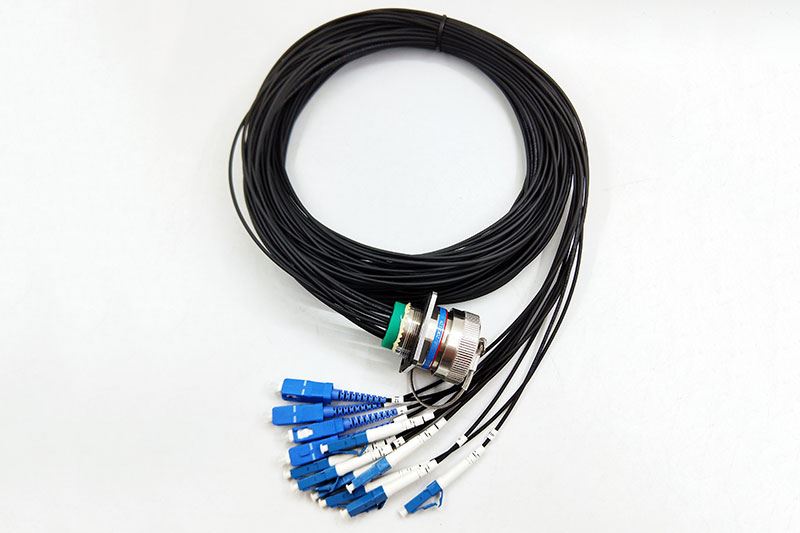

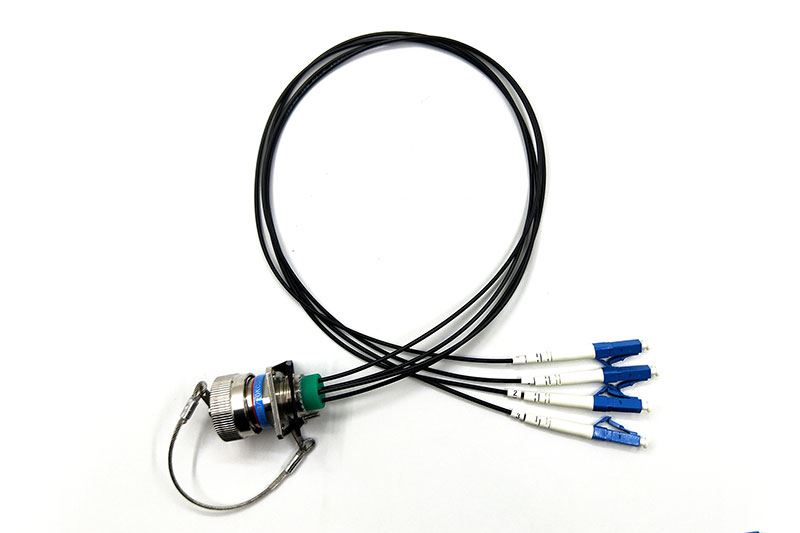

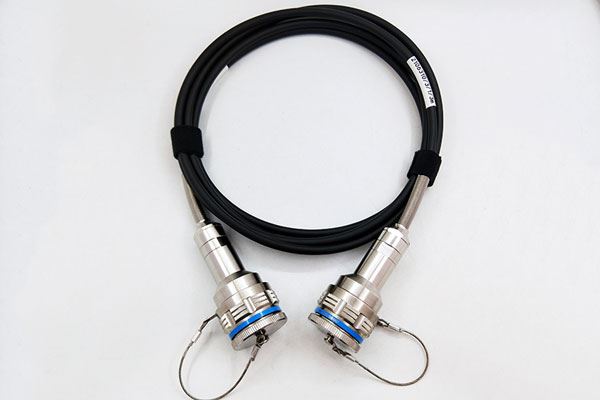

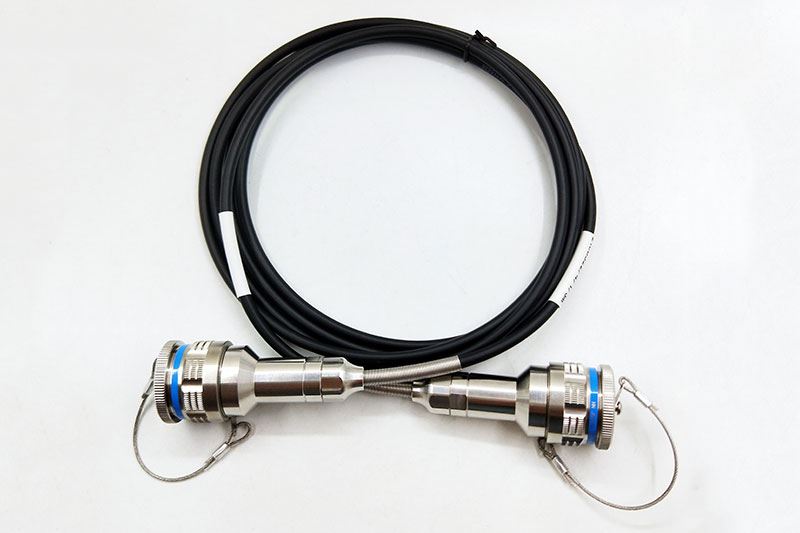

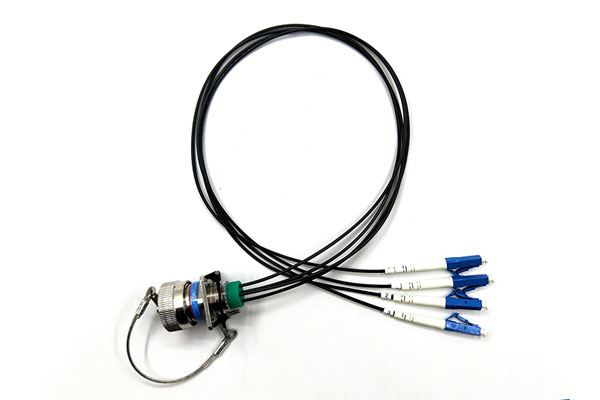

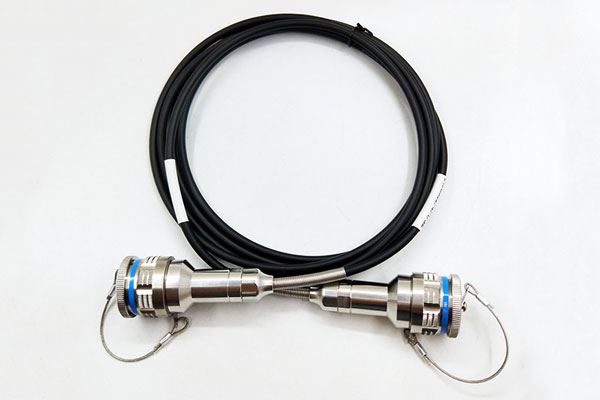

Fiber Optic Connectors
ARINC801 Series
General Information
- Interface dimensions compliant with MIL-DTL-38999 III, and performance aligned with ARINC801 standards
- Flexible housing options with various materials and coatings to meet specific environmental requirements
- Five-key positioning for blind mating and anti-misinsertion functionality, triple-start thread for fast connection with anti-loosening structure
- Precise contact achieved through ceramic ferrules
- Multiple rear configuration options available
- Adapter socket available, offering sealed solutions and liberating optical cable constraints
Main Technical Information
- Insertion Loss: ≤0.6dB
- Operating Temperature: -55°C to +85°C
- Vibration Resistance (0.4G²/Hz): 10Hz to 2000Hz
- Shock Resistance: 2940 m/s², 3ms duration, velocity change rate of 2.96m/s
- Mechanical Lifespan: 500 cycles
- Tensile Strength: ≥68N (for 2mm contact jumpers)
- Hermeticity: Gas leakage ≤1*10-9 Pa.m3/s, internal and external pressure difference of 1 atmosphere
- Salt Spray Test:
- Stainless Steel Material: ≥1000 hours
- Cadmium-plated (or Nickel-plated) Aluminum Alloy: ≥48 hours
