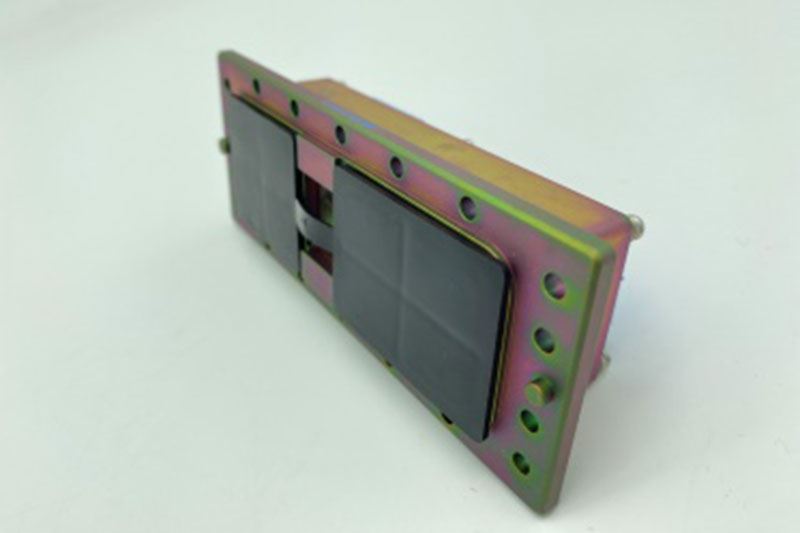

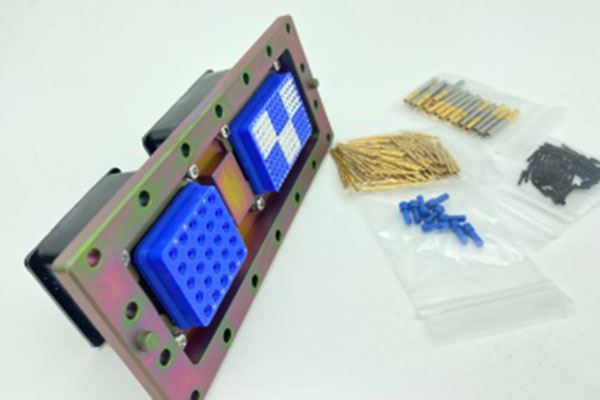

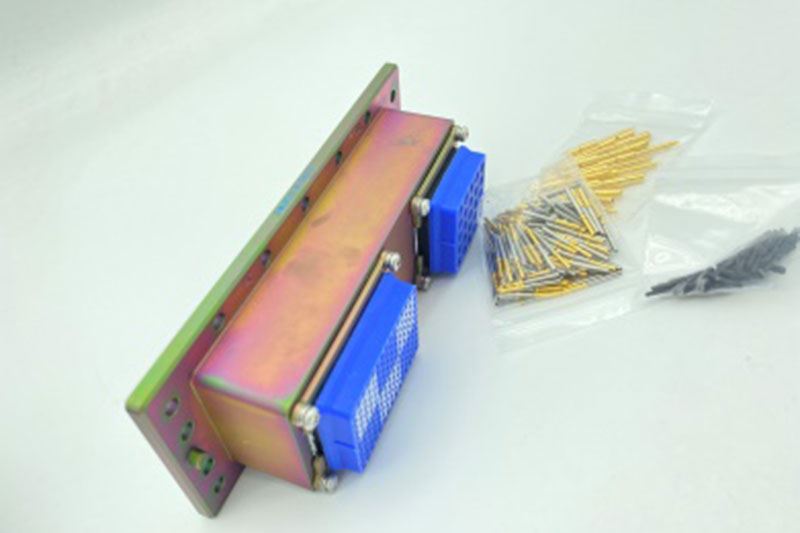

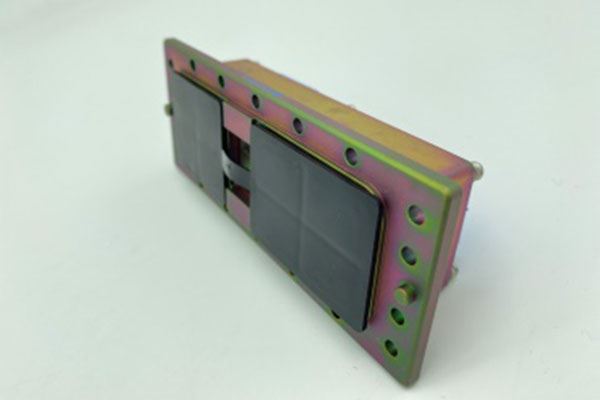

Rack and Panel Connectors

S7 (MIL-DTL-83527) Series
General Information
  • Compliant with MIL-DTL-83527B standards
  • Error correction mechanism with 99 keying positions for error prevention
  • Multiple material and plating options to adapt to various environmental requirements
  • Enable integration of common low-frequency, power, high-frequency, high-speed differential, and optical contacts for seamless signal transmission
  • Modular design allows users to select different module combinations based on their specific needs
  • Standard 8# RF contacts operate at frequencies ranging from 0 to 500MHz, while floating 8# RF contacts operate at frequencies from 0 to 18GHz
Request a Quote
  • Rack and Panel Connectors
  • Rack and Panel Connectors

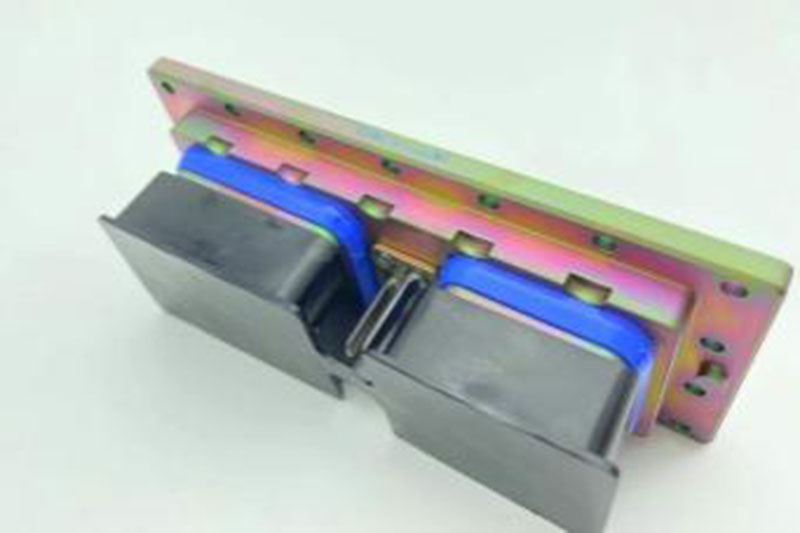

S7M2ZPY315-02
  • Rack and Panel Connectors
  • Rack and Panel Connectors

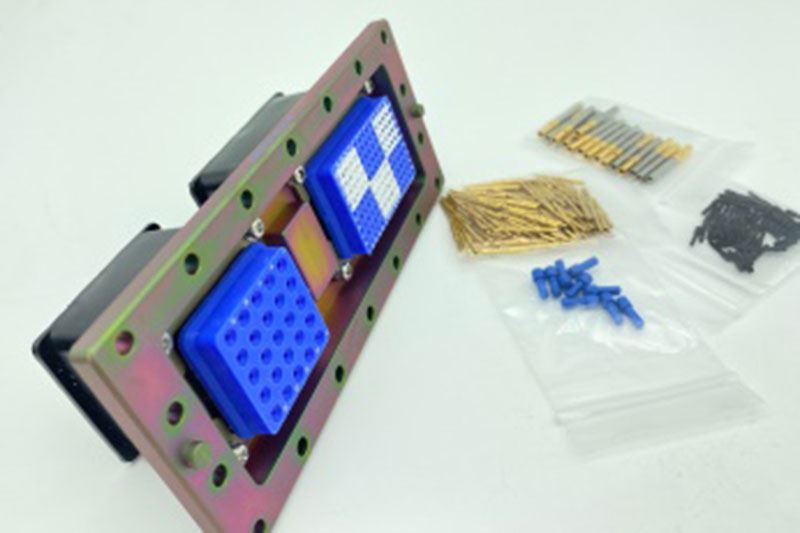

S7M2TSY315-02
Main Technical Information
  • Mechanical Lifespan: 500 cycles
  • Shock Resistance: 11ms half sine wave, 50g acceleration
  • Vibration Resistance:
    • Functional Vibration: 15 to 2000Hz, power spectral density of 0.126g^2/Hz, 8-hour duration
  • Temperature Range: -65°C to +150°C
  • Salt Spray Test:
    • Class F: 48 hours
    • Class W: 500 hours
    • Class M: 500 hours (acidic atmosphere)
  • Fluid Resistance: Resistant to various fuels, coolants, and oils
  • Insulation Resistance: ≥5000MΩ (at 500V DC)
With a team of highly skilled R&D professionals and certifications in high-tech enterprise and quality management systems, Kaida exports its products to over 30 countries worldwide, earning a solid international reputation.
