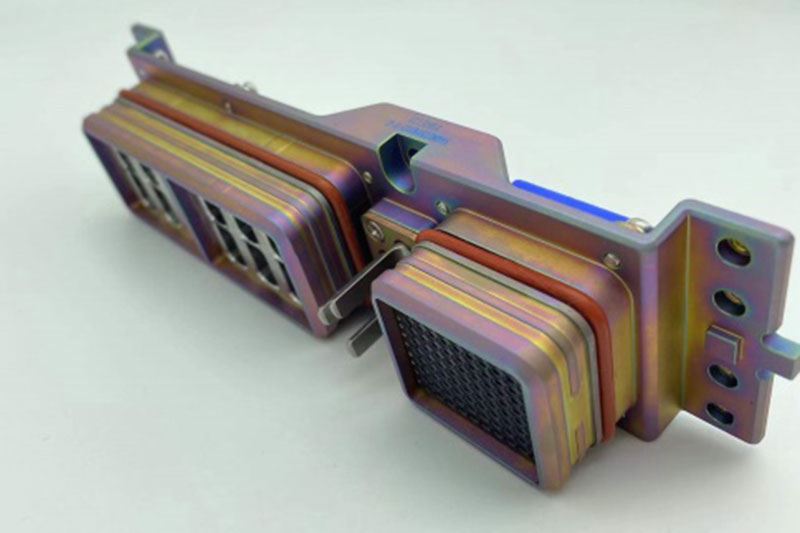

Rack and Panel Connectors

S6 (ARINC600) Series
General Information
  • Compliant with ARINC600 standards
  • Error correction mechanism with 99 keying positions for error prevention
  • Multiple material and plating options available to meet various environmental requirements
  • Enable mixing of low-frequency, power, high-frequency, high-speed differential, and optical contacts for integrated signal transmission
  • Modular design allows users to customize connectors by selecting different modules
  • Standard 8# RF contacts operate at frequencies from 0 to 500MHz, while floating 8# RF contacts operate at frequencies from 0 to 18GHz
Request a Quote
  • Rack and Panel Connectors
  • Rack and Panel Connectors

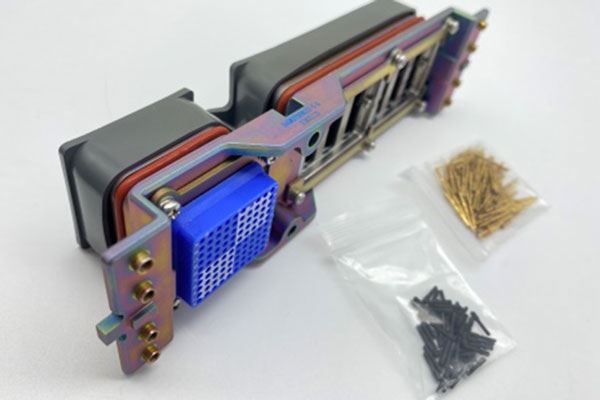

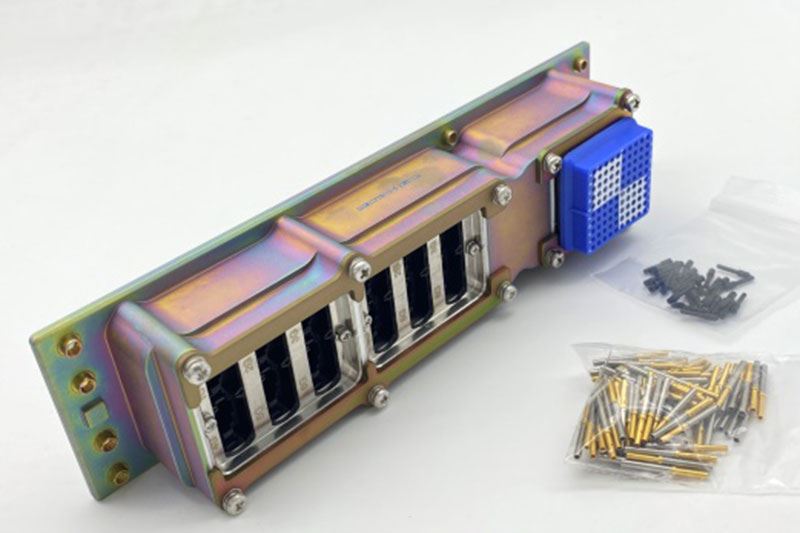

S6GM2ZPY0112-G
  • Rack and Panel Connectors
  • Rack and Panel Connectors

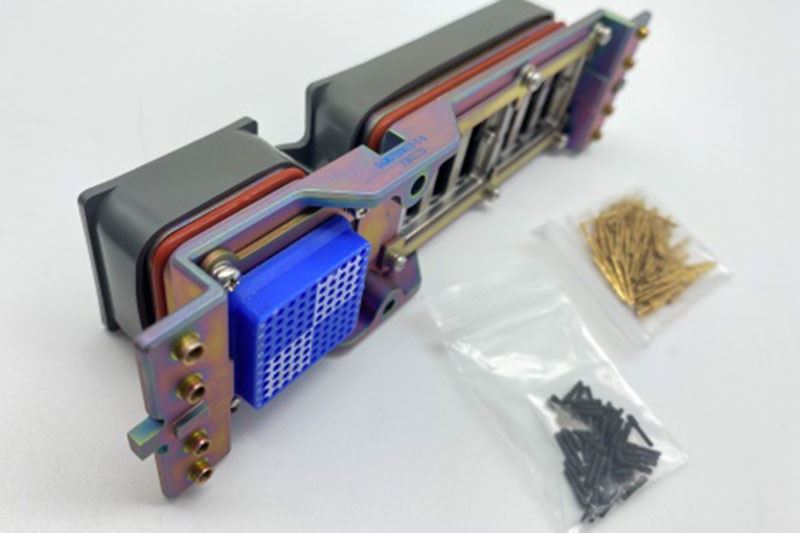

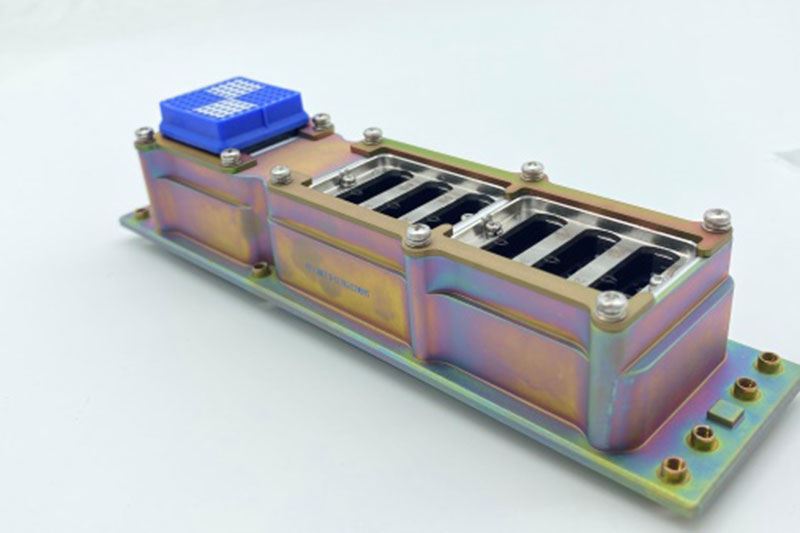

S6GM2TSY0112S-G
  • Rack and Panel Connectors

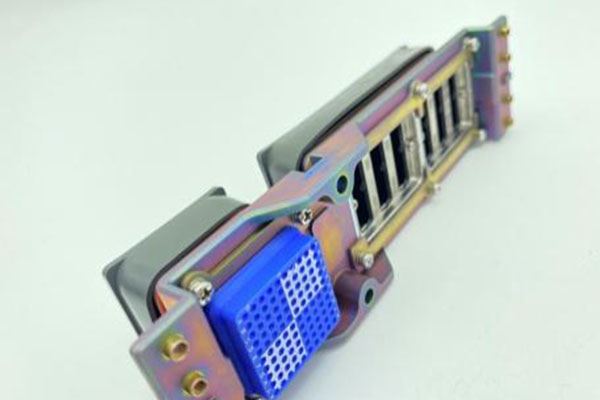

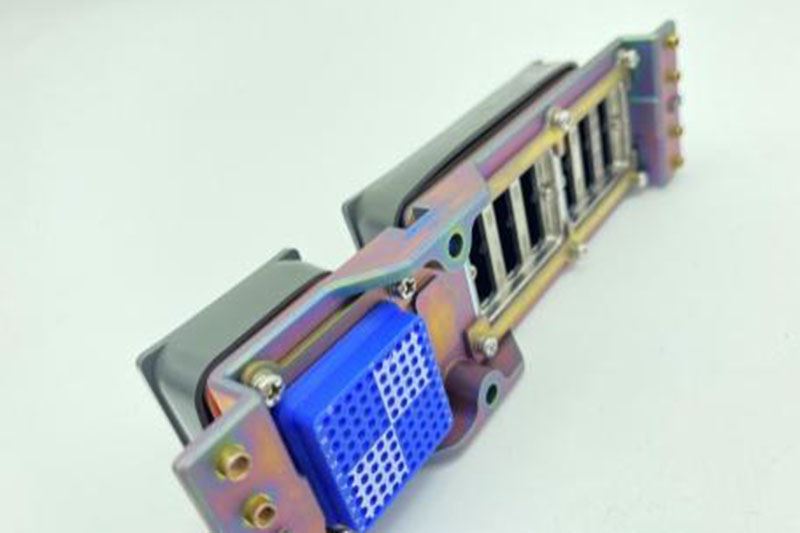

S6GM1TSY0132-S-G
Main Technical Information
  • Mechanical Lifespan: 500 mating cycles
  • Shock Resistance: 11ms half sine wave, 50g acceleration
  • Vibration Resistance:
    • Functional Vibration: 15 to 2000Hz, power spectral density of 0.126g^2/Hz, 6-hour duration
    • Endurance Vibration: 15 to 2000Hz, power spectral density of 0.201g^2/Hz, 7.5-hour duration
  • Temperature Range: -65°C to +150°C
  • Salt Spray Test:
    • Class F: 48 hours
    • Class W: 500 hours
    • Class M: 500 hours (acidic atmosphere)
  • Fluid Resistance: Resistant to various fuels, coolants, and oils
  • Insulation Resistance: ≥5000MΩ (at 500V DC)
With a team of highly skilled R&D professionals and certifications in high-tech enterprise and quality management systems, Kaida exports its products to over 30 countries worldwide, earning a solid international reputation.
