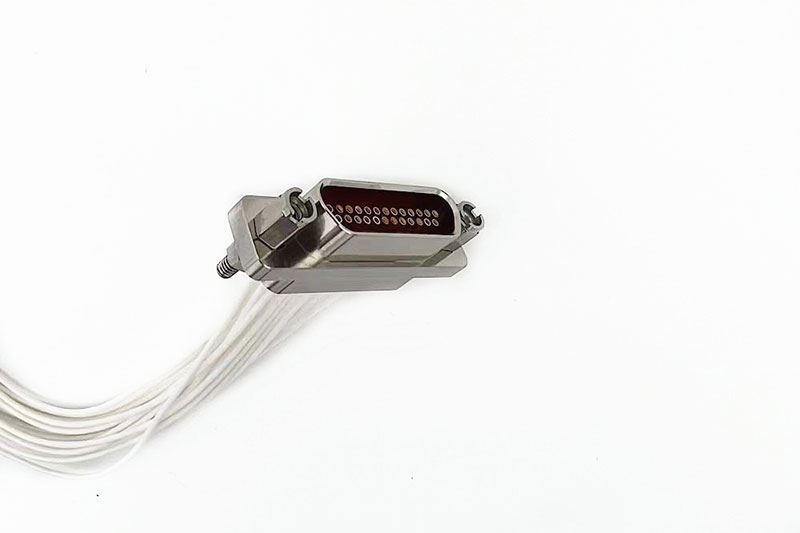

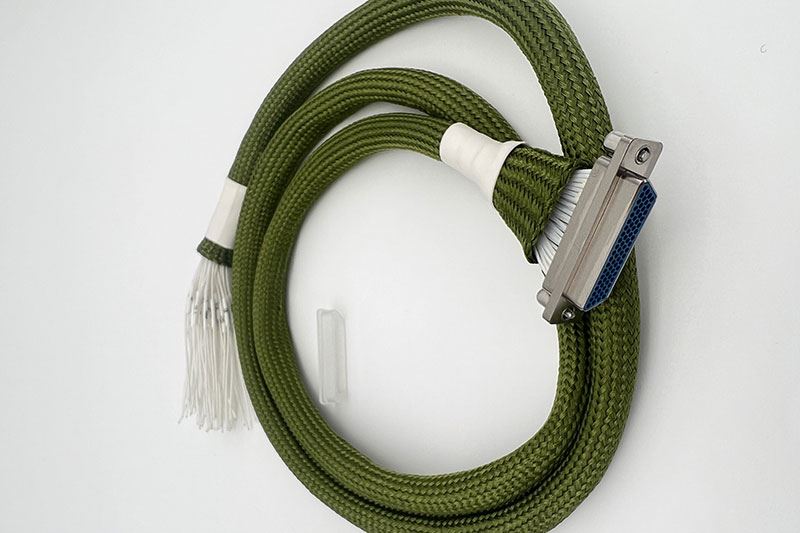

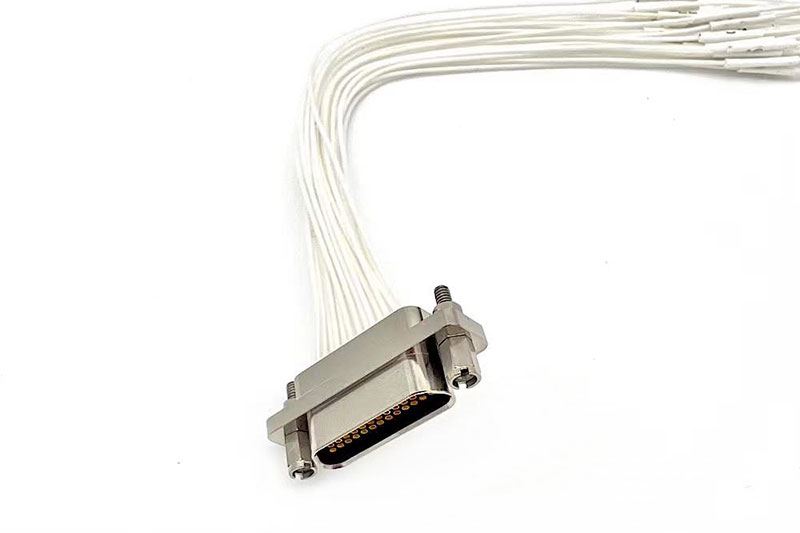

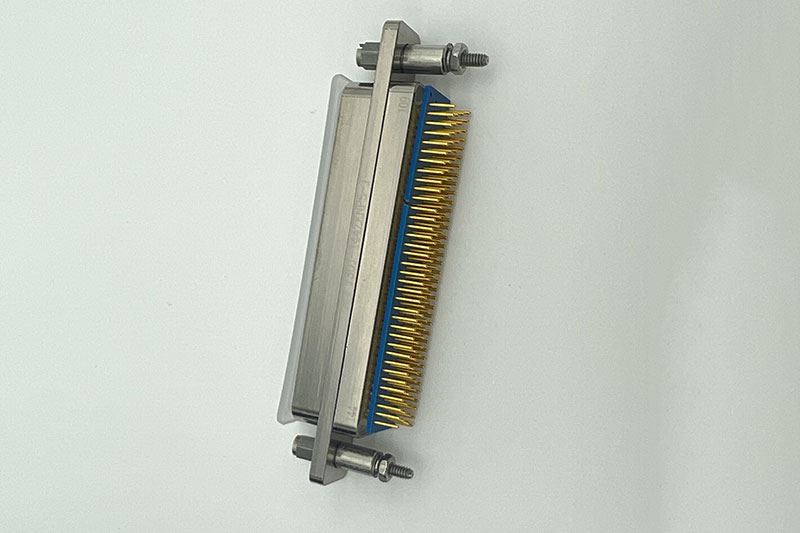

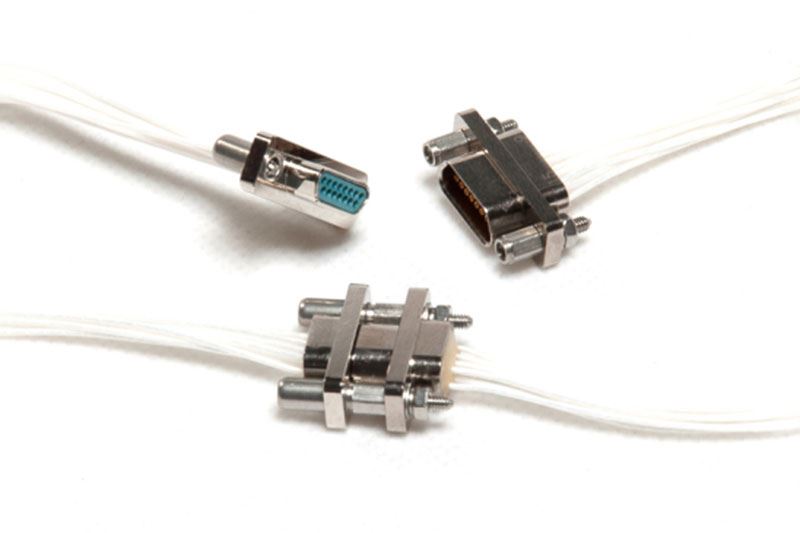

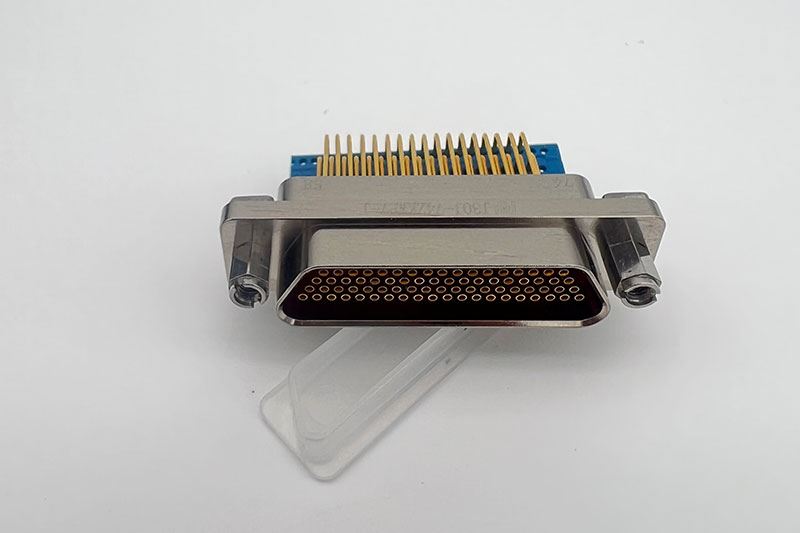

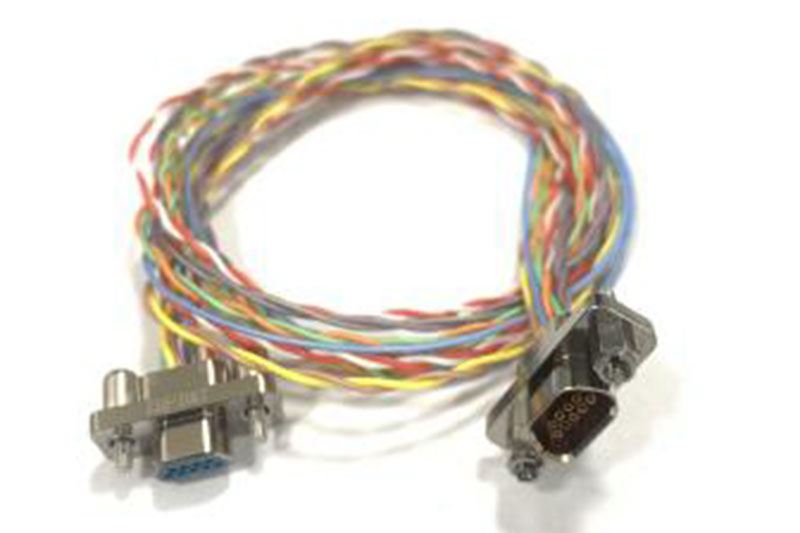

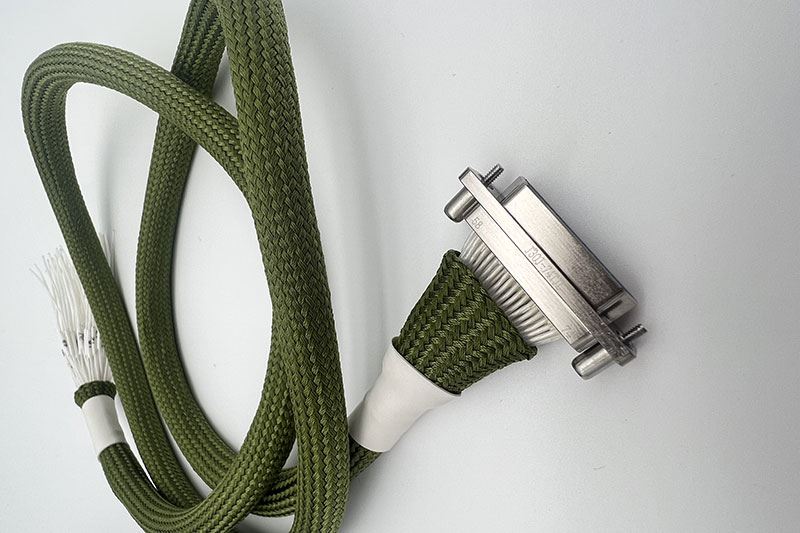

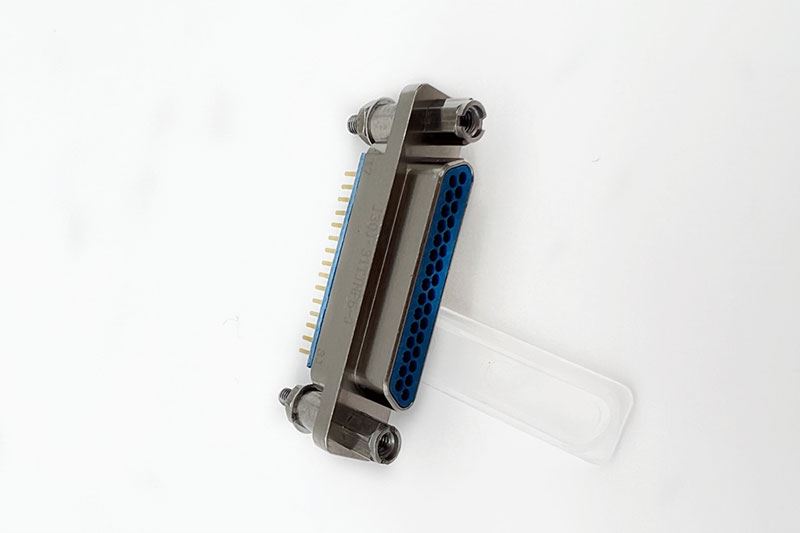

General Information
- Compliant with GJB2446A (equivalent to MIL-C-83513)
- Positive contacts feature elastic stranded pins
- High-density contacts with a spacing of 1.27mm
- Metal shielded housing construction equivalent to the MDM series from the United States
- Available in eleven specifications, ranging from 9 to 144 contacts

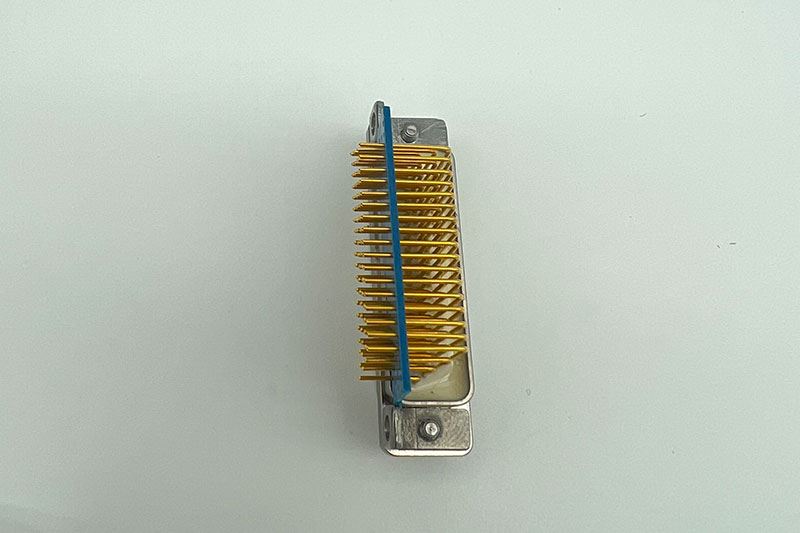

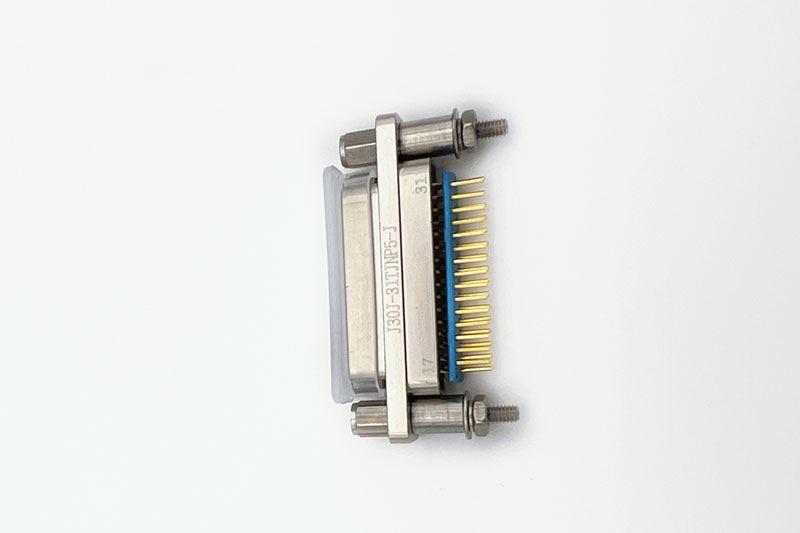

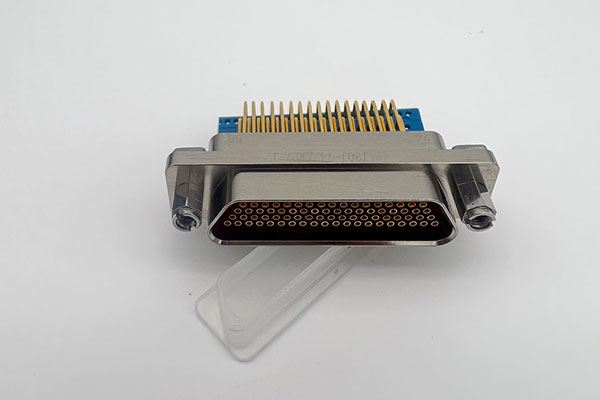

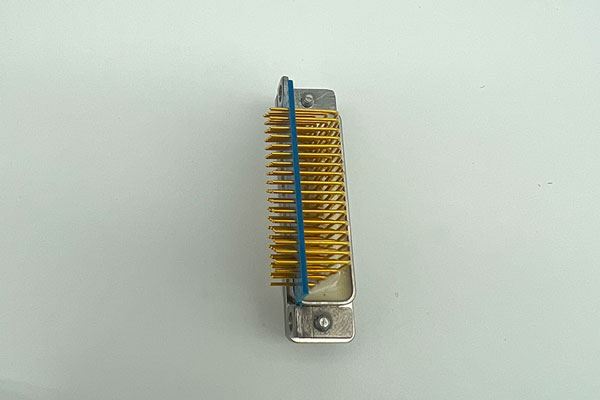

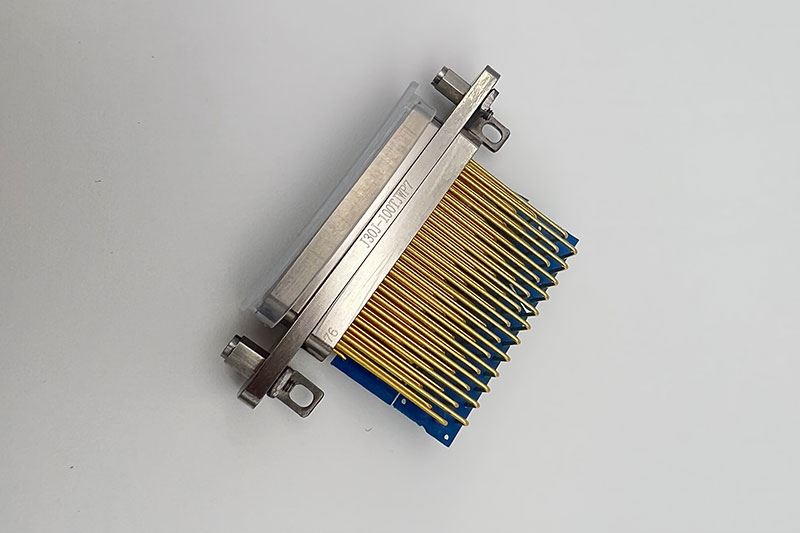

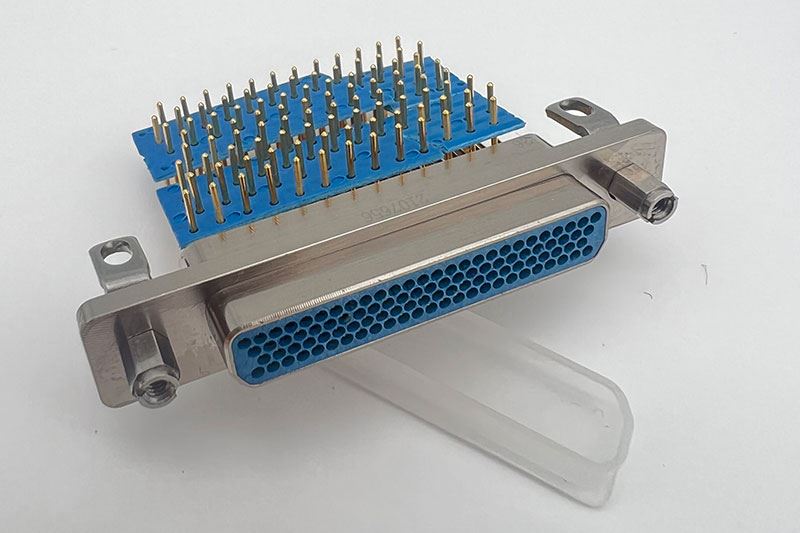

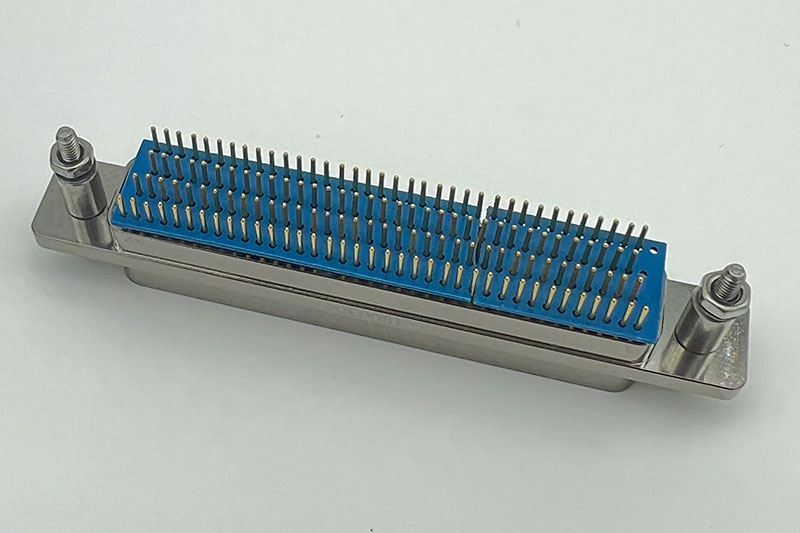

- Tail termination modification available for PCBs
- Executing enterprise standards:Tail termination modification available for PCBs
- J30J Series Standard Products: 21E0.204.118JT
- J30JM Series Gel-Sealed Products: Q/21EJ618
- J30J Series Glass Sintered Seal Products: Q/21EJ1001
Environments
Built to withstand demanding operating conditions, our J30J series rectangular connectors are engineered to endure strong vibrations, shocks, and other challenging environments. They are particularly suitable for applications that require special considerations for space utilization and lightweight equipment.
Main Technical Information
- Operating Temperature: -55°C to +125°C
- Rated Current: 3A
- Contact Resistance: ≤ 10mΩ
- Insulation Resistance: ≥ 5000MΩ at room temperature; ≥100MΩ under humid conditions
- Withstanding Voltage: 800V
- Vibration Resistance: 10 to 2000Hz with an acceleration of 196m/s²
- Shock Resistance: Acceleration of 735m/s²
- Acceleration Resistance: 735m/s
- Mechanical Lifespan: 500 cycles
- Air Leakage Rate Indicator (for J30J Series Sealed Products, under a pressure difference of one atmosphere):
- J30JM Series: 5×10-2Pa•cm3/s J30JM1
- J30JMD1 Series: 1×10-3Pa•cm3/s
- Recommended Tightening Torque for Locking Screws:
- 9 to 100 contacts: 0.15 to 0.2 N•m
- 144 contacts: 0.2 to 0.3 N•m
- Salt Spray Test: 96 hours
