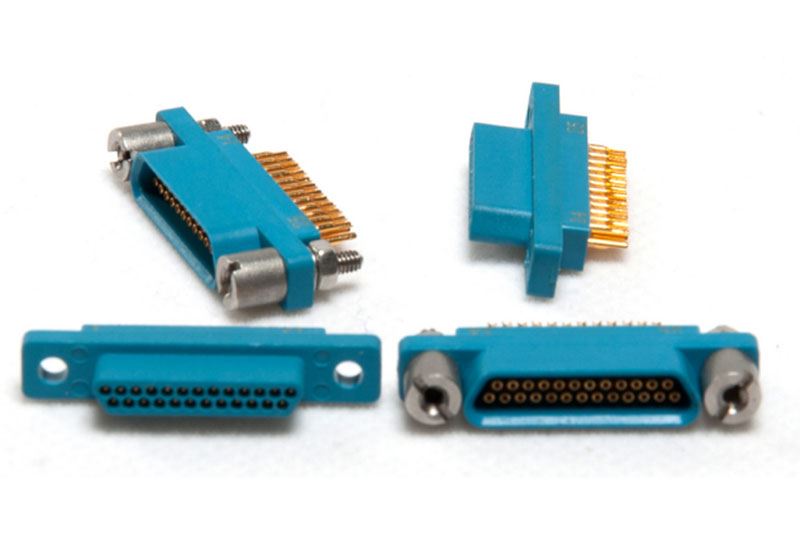

Rectangular Connectors

J30 Series
General Information
  • Compliant with GJB2446A (equivalent to MIL-C-83513)
  • Positive contacts feature elastic stranded pins
  • High-density contacts with a spacing of 1.27mm
  • Plastic housing construction equivalent to the MD series from the United States
  • Available in seven specifications, ranging from 9 to 51 contacts
  • Tail termination modification available for PCBs
Request a Quote
Rectangular Connectors
  • Rectangular Connectors
  • Rectangular Connectors

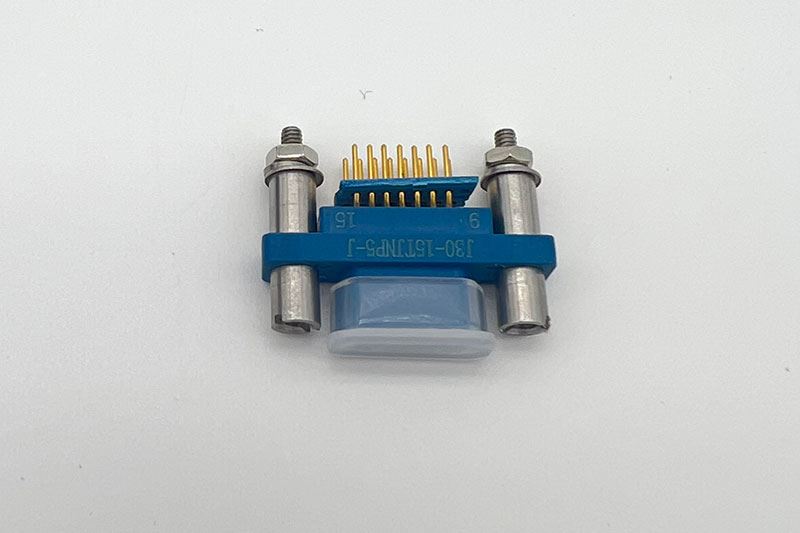

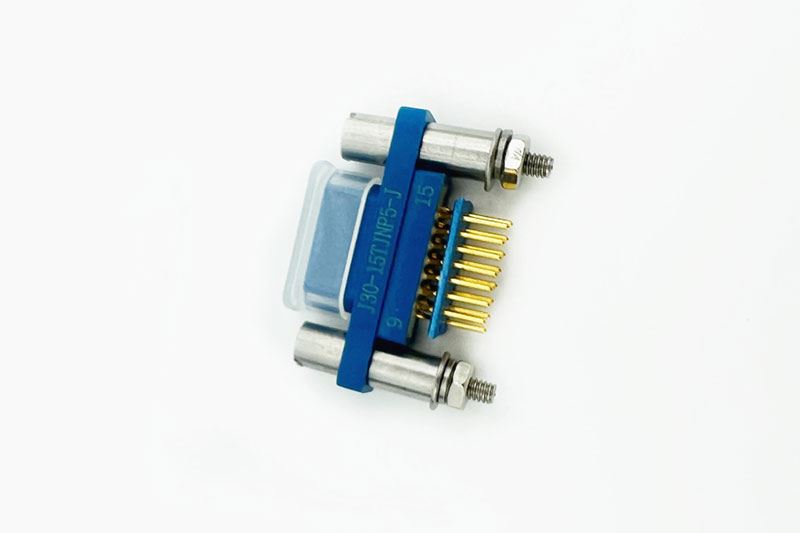

J30-15TJNP5-J
Applications of Rectangular Connectors

Our J30 series connectors feature high-density, lightweight, and miniaturized design, providing reliable interconnectivity for electrical circuits between cable-to-cable, cable-to-PCB, and PCB-to-PCB connections.

Environments

Built to withstand demanding operating conditions, our connectors are engineered to endure strong vibrations, shocks, and other challenging environments. They are particularly suitable for applications that require special considerations for space utilization and lightweight equipment.

Product Categories
J30 Series Crimp Connectors and Sockets:

Featuring a crimp-style connection between contacts and wires.

J30 Series Vertical PCB Connectors and Sockets:

Available in three types based on the printed circuit board grid spacing (pitch × row pitch):
N: 2.54x1.6
N1: 2.54x2.54
N-J: 1.27x2.54

J30 Series Right-Angle PCB Connectors and Sockets:

Offering two types based on the PCB grid spacing (pitch × row pitch):
W: 2.54x2.54
W-J: 1.27x2.54

General Information
  • Operating Temperature: -55°C to +125°C
  • Humidity: 95% at 40°C
  • Rated Current: 3A
  • Contact Resistance: ≤ 10mΩ
  • Insulation Resistance: ≥ 5000MΩ at room temperature
  • Withstanding Voltage: 800V at room temperature
  • Vibration Resistance: 10 to 2000Hz with an acceleration of 196m/s²
  • Shock Resistance: Acceleration of 735m/s²
  • Mechanical Lifespan: 500 cycles
With a team of highly skilled R&D professionals and certifications in high-tech enterprise and quality management systems, Kaida exports its products to over 30 countries worldwide, earning a solid international reputation.
