Circular Connectors

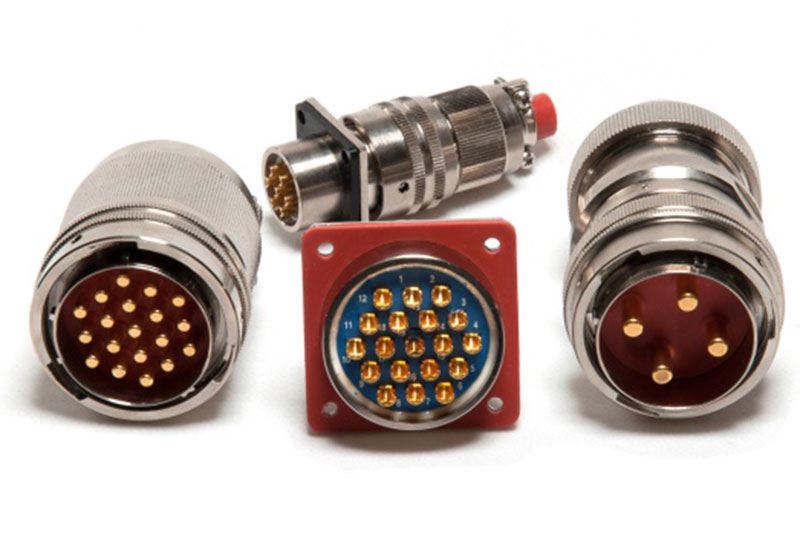

Y27 Series

Our Y27 series connectors adhere to the rigorous national military standard GJB2905-97 and the US military standard MIL-C-38999. Featuring a user-friendly push/pull coupling mechanism, these connectors are crafted from high-quality materials including aluminum alloy, naval brass, and stainless steel. With a wide range of 13 shell sizes, 18 contact arrangements spanning from 1 to 121 contacts, and 10 current ratings from 3A to 250A, the Y27 series circular connectors offer unmatched versatility and adaptability.

Engineered for seamless connection and effortless disconnection, our Y27 series connectors excel in blind mating and various challenging scenarios. They exhibit exceptional resistance to vibration, salt spray, and electromagnetic interference, while also offering other special models (dust-resistant, rain-resistant, and gas sealing). Widely utilized in the aerospace, aviation, marine, field operations, power distribution, railways, and telecommunication sectors, the Y27 series connectors provide reliable connectivity solutions that fuel progress across industries.

Request a Quote
Download PDF
Circular Connectors
Environmental Performance of Circular Connector
Operating Temperature -55 °C ~+125 °C
Operating Pressure 101.3KPa ~1.33Pa
Relative Humidity 90%~98% (40±2°C)
Vibration Resistance Sinusoidal Vibration: 10~2000Hz
Acceleration: 196m /s2
Random Vibration Resistance Power Spectral Density: 0.4G2 /Hz
Root Mean Square Value of Acceleration: 23.1G
Shock Resistance 980m /s2
Acceleration Resistance 980m /s2
Salt Spray Test Aluminum alloy shell with nickel plating: 48h
Naval Brass Shell with Nickel Plating or Passivated Stainless Steel Shell 1000h
EMI/RFI Shield RFI Frequency: 100MHz~1GHz
Minimum Attenuation: 45dB
Immersed in Standing Water Immersion Depth: 2m (only applied to Y27F, Y27G, and Y27H series)
Number of Contact Pins 1~121
Electrical Continuity (between the braided metal sheath and the backshell) Maximum Voltage Drop: 50mV
Air Tightness of Receptacle Connector Leakage Rate: 1Pa.cm3/S (rubber seal)
Leakage Rate: 1×10-4Pa.cm3/S (glass sealed)
Mechanical Lifespan 500 mating cycles

With a team of highly skilled R&D professionals and certifications in high-tech enterprise and quality management systems, Kaida exports its products to over 30 countries worldwide, earning a solid international reputation.
